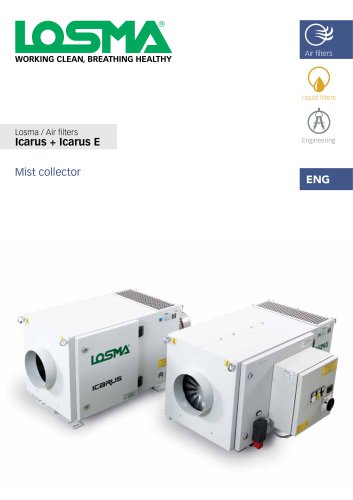

WORKING CLEAN, BREATHING HEALTHY Liquid filters Mist collector

WORKING CLEAN, BREATHING HEALTHY Losma grants that every single system is tested through strict control procedures. Every unit is provided with a Quality and Functional Test ICARUS is a static extraction system for filtration of air containing oil mists, micro-mists and smoke, generated from coolants (both emulsion or neat oil), which can be used on most types of machine tool and for a majority of machining processes. Icarus is available in three sizes with flowrate from 600 to 1650 m3/h with different filtration efficiency combinations,

Working Principles Polluted air is collected thanks to negative pressure created by a high efficiency centrifugal fan, mounted after the filters. In this way the fan cannot be damaged, since it works with clean air without any pollutant residual. Air passes initially through a special deflector, whose function is to distribute uniformly the air onto the filter’s surface, assuring a proper use of the whole useful contact area of the filter. Then the air crosses a series of filters with increasing efficiency up to and more than 95% with polluted particles measuring less than a micron....

Plus Versatility and modularity: The use of filters with increasing efficiency and the possibility of implementing pre and postfiltration systems make Icarus the ideal filter for all modern mechanical machining, from the less demanding to the most demanding ones. The three different versions and the different extracting power of Icarus facilitate the choice for the best appropriate solution for the customer needs, avoiding energy waste for over dimensioned systems, or inefficient systems for low power selection. Manometer: ICARUS is equipped with a pressure gauge to read the internal filter...

Icarus ICARUSSS Icarus Icarus M ICARUS L Icarus M Icarus MODEL Icarus Icarus S Icarus M Icarus Icarus L 1050 905 625 125 Noise level Ø Inlet [mm} Noise level O] [dBa] ø Inlet

ICARUS E is an electrostatic filter for the extraction of air containing oil mists, micro - mists, vapours and smoke generated by machining processes, especially those using neat oil. It is available in three sizes (S, M, L) from 600 to 1.700 m3/h with different increasing filtering efficiency Losma grants that every single system is tested through strict control procedures. Every unit is provided with a Quality and Functional Test Certificate. combinations, up to 99,97% (with the use of HEPA H13 final filter). Standard equipment of the system is made by an electrical control box, “CE”...

Working Principles Polluted air is collected thanks to negative pressure created by a high efficiency centrifugal fan, mounted after the filters. In this way the fan cannot be damaged, since it works with clean air without any pollutant residual. Air passes initially through a special deflector, whose function is to distribute uniformly the air onto filter’s and cell’s surface. After passing through the metallic pre-filter (washable) air passes through the ionizing section of cells, charging electrostatically, and passing then into the collector section composed by many aluminium foils,...

Plus Versatility and modularity: The use of filters with increasing efficiency and the possibility of implementing pre and post-filtration systems make Icarus E the ideal filter for al modern mechanical machining processes, from the easiest to the most demanding ones. The three different building versions and the different extracting power of Icarus E facilitate the choice for the best appropriate solution for customer requirements, avoiding energy waste for over dimensioned systems, or inefficient systems for low power selection. Re-usable: Icarus E uses only re-usable filters wich saves...

Technical Data Icarus E S Icarus Icarus E M Icarus E L Icarus Icarus E S Icarus E M Icarus Icarus E L Noise level

H13 Provides a very high filtration efficiency, up to 99,95%, following the EN 1822 regulation. Useful in case of micro-mists and smoke X-Guard Filtration module for swarf and dust, working through metallic and synthetic filtration stages. Useful to optimise the air suction efficiency in case of high production of oil mists containing dusts and metallic swarf.

Losma S.p.A. Via E. Fermi 16 24035 Curno (BG) CAP. SOC. I.V. € 500.000,00 Reg. Imp. e P.I e C.F. 012345901962 R.E.A. 185685 Germany - Losma GmbH www.losma.de UK - Losma UK Limited www.losma.co.uk Losma Engineering - Torino www.losma.it India - Losma India Pvt Ltd www.losma.In
