Balancing machine series for the auto parts industry

Balancing machine series for the auto parts industry
7Páginas

Extractos del catálogo

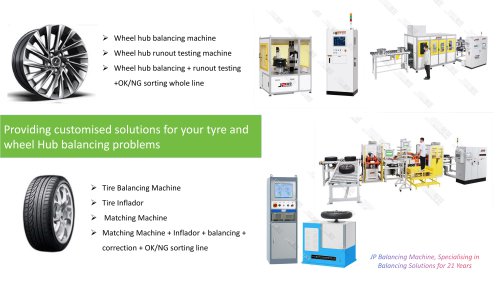

Balancing machine series for the auto parts industry - 1

Ø Wheel hub balancing machine Ø Wheel hub runout testing machine Ø Wheel hub balancing + runout testing +OK/NG sorting whole line Providing customised solutions for your tyre and wheel Hub balancing problems Ø Tire Balancing Machine Ø Tire Inflador Ø Matching Machine Ø Matching Machine + Inflador + balancing + correction + OK/NG sorting

Abrir la página 1 del catálogo

Balancing machine series for the auto parts industry - 2

• Flywheels & dual-mass flywheels • Crankshaft flywheels \ • Pressure plates • Correction method: horizontal drilling & vertical drilling • Balancing test: single-sided balancing • Accuracy grade: G6.3 & G2.5 I • Single removal rate: 90% • Suitable for mass production of the above products J Horizontal Drilling

Abrir la página 2 del catálogo

Balancing machine series for the auto parts industry - 3

HVAC Fan Balancing Machine Condenser Fan Balancing Machine Blower Fan Balancing Machine Seat Fan Balancing Machine Radiator Fan Balancing Machine Magnetic Steel Rotor Balancing Machine Balancing Machine Introduction: • Drive type: Self-drive, belt drive, vertical spindle drive • Balancing method: Single-sided/double-sided • Special functions: Indexing function for angle finding • Automatic positioning • Supports automatic correction and manual correction

Abrir la página 3 del catálogo

Balancing machine series for the auto parts industry - 4

Balancing Solutions For Automotive Powertrains Balanceable workpieces: New energy motor rotors, differential housing flanges, gear shafts, intermediate shafts, eccentric shafts, crankshafts --High equipment stability and rapid efficiency --Intelligent design compliant with Industry 4.0 --Multiple configurations available: single-station, dual-station, multi-station production lines --Supports fully automated operation: one-button start, end-to-end automatic measurement and correction of unbalance, reducing reliance on manual intervention while lowering operational complexity and human error...

Abrir la página 4 del catálogo

Balancing machine series for the auto parts industry - 5

Miniature winding motor rotor Ø Ø Ø Ø Ø Repair method: V&R milling Precision requirement: G2.5 Typ: 30 seconds Double-station, single-station operation NG/unqualified feeder Balancing machine for Automotive Motor Rotor industry New energy motor rotors ü Repair methods: Drilling & milling ü Precision requirement: G2.5 ü Cycle time: 30 seconds ü Single-station and multi-station options available ü Connectable to robotic arms and production lines ü ISO & CE compliant ü Customers: BYD, BorgWarner, Tesla, Comstar, Schaeffl

Abrir la página 5 del catálogo

Balancing machine series for the auto parts industry - 6

Suitable products: Ø Brake discs Ø Brake drums Ø Clutches Ø Torque converters Ø Retarders Automobile Brake System Balancing Machine Correction method: Milling,Riveting Drilling (horizontal & vertical) Production cycle: 30 seconds Precision: G2.5 & G6.3 Automation: Compliant with Industry 4.0 standards Capable of integration with robotic arms and gantry systems Supports data upload and traceability Customisable functions available: QR code scanning, marking, multi-station operation, assembly line integration, et

Abrir la página 6 del catálogo

Balancing machine series for the auto parts industry - 7

High-Speed Balancing Machine Applications: Motor rotors, fan rotors, multistage pump rotors, centrifuge rotors, etc. --Meets high-speed balancing requirements for flexible rotors --Automatic traverse mechanism with dual-rack swing frame --Equipped with independent vibration measurement and analysis system --Specially designed enclosed plate-type high-speed roller frame structure, lightweight with excellent stability. --Specialised high-speed, high-torque universal joint for smooth power transmission, rapid start-up and user-friendly operation --Base frame adaptable for modification or...
